Product Features
● The maximum power consumption is 3.5W
● Complies with QSFP standards for hot swappable
● Equipped with digital optical monitoring function, providing powerful diagnostic capabilities.
● Tested in the target switch to ensure its excellent performance, quality, and reliability
● Compliant with SFF-8436 and QSFP MSA standards
Specifications
| Model |

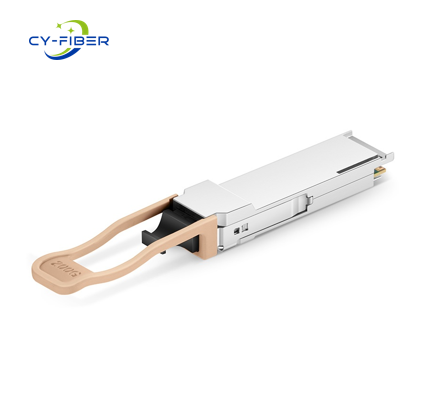

QSFP56 200G SR4 100M |
Line type |
MPO |
| Wavelength | 850nm | Maximum transmission distance | 100m |
| Cable type |
MMF |
Transmission speed | 4×50Gbps |
|
TX power (dBm) |
-3~3 |
RX sensitivity (dBm) |
-6.5 |
|
Power consumption (W) |
<5W |
Working temperature |
0~70° |
| Extinction ratio | >3.5dB | Compliant with standards | SFF-8665 MSA |
